Xtreme Radar
Xtreme Radar – Making Workplace Safe
Product Overview

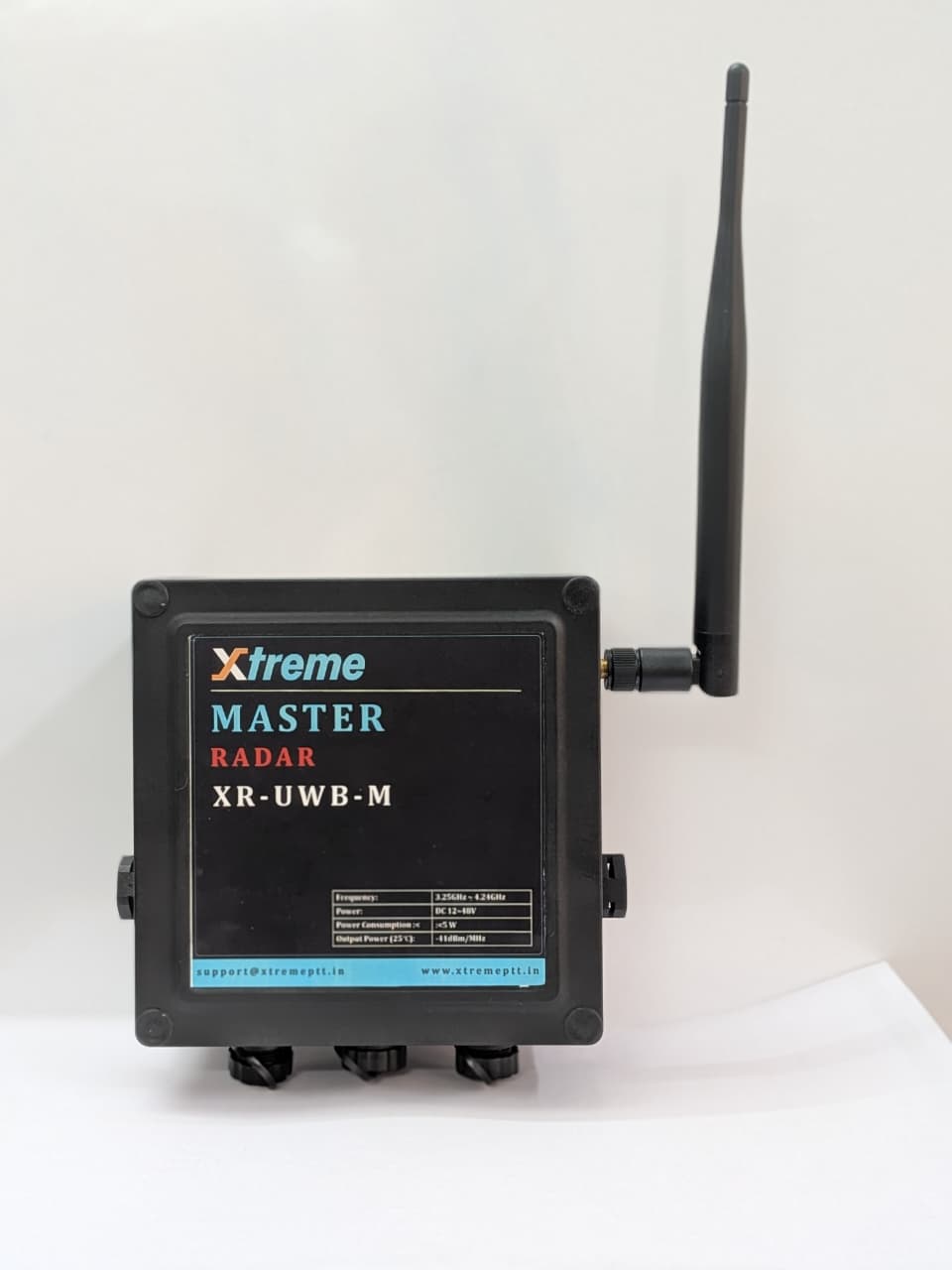

The Xtreme Radar uses UWB Radar technology to deliver a reliable solution for workplace safety. Using high-frequency two-way communication, it helps prevent accidents and enables precise real-time asset tracking.
Featuring positioning to the Machine Positioning System controller to generate alarms, tripping signals and take necessary actions.
To suit different operational requirements, it can be tailored to meet specific industry needs, making it ideal for a wide range of safety and positioning applications
Key Technical Features
UWB Communication
- Protocols / Frequency: 802.15.4a UWB / 3.25 GHz ~ 4.24 GHz
- Channel bandwidth: 500 MHz
- Mode: Master / Slave
- Configuration Mode: CLI
Industrial Protection
- Temperature: -20°C ~ 65°C
- Protection level: IP65
Power & RF Specifications
- Input power: DC 12 ~ 48 V
- Power consumption: <5 W
- Output power (25°C): -41 dBm/MHz
- RF Spec. (BLE): 2400 MHz ~ 2483.5 MHz
- Output power: 4 dBm
Applications
Xtreme Radar
1. Outdoor Positioning Systems
Accurate real-time asset tracking in factories, warehouses and logistics centres, overhead cranes and Stacker/Reclaimer machines.
2. Collision Avoidance System
Reduces accidents in busy, high-traffic industrial environments.
3. Distance Keeping
Ensures safe spacing between heavy-duty machines in industries.
Why Choose Xtreme Radar?
Workplace Safety System
Uses UWB technology and high-frequency two-way communication to help prevent accidents.
Real-Time Asset Tracking
Enables precise, real-time tracking of assets for positioning applications.
Tailored to Operational Requirements
Can be tailored to meet specific industry needs across a wide range of safety and positioning applications.
